Xtramus社は業界標準で低コスト、高パフォーマンスなネットワーク試験機器を提供しています。

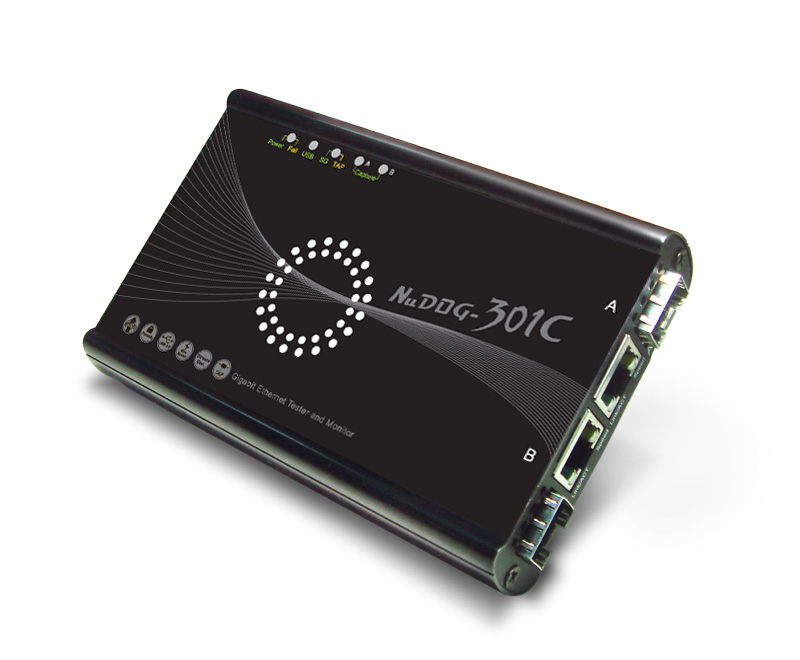

弊社ではXtramus社のポケットサイズのパケットジェネレータ NuDOG-301を取り扱っています。

NuDOG-301の特徴

Interface

  • Connection to DUT: Combo Port (10/100/1000 Mbps UTP & 1000 Mbps SFP) x 2
  • Connection to PC: Mini-USB 2.0 Port x 1
  • LED Indicator

  • Power/Fail: Power status
  • Capture A: Capture mode for A port is activated
  • Capture B: Capture mode for B port is activated
  • USB: USB connection status
  • SG/TAP: Stream Generation in TAP/Loop Mode or NIC Mode
  • Applications

  • Network Performance Testing
  • Troubleshooting/ Debugging
  • Traffic/Protocol Analyzing
  • Traffic/Protocol Simulation and Monitoring
  • Application Mode
      Three application modes that is controlled by Application software:
  • TAP/Loopback Mode:
  • NuDOG-301 monitors any data that flows through it and also provides loopback and abundant packet counters
  • SG (Stream Generation) Mode:
  • NuDOG-301 generates bi-directional network streams to DUT for tests required
  • NIC (Network Interface Card) Mode:
  • NuDOG-301 simulate as an NIC connecting to the PC via USB port
    Dimension
      125.8mm x 85mm x 27.5mm
    Temperature

  • Operating: 0℃~ 40℃ (32℉ ~ 104℉)
  • Storage: -10℃~ 70℃ (14℉ ~ 158℉)
  • Humidity
      Operating: 0% ~ 85% RH
    Storage: 0% ~ 85% RH
    Net Weight
      Approx. 230g
    Power Source
      12V DC External Adaptor
    Software Support
      The following utility softwares are optional for working with NuDOG-301:
  • DApps-NIC: NIC simulation suite
  • DApps-TAP: Ethernet TAP suite base on TAP, Layer 1 loopback and Layer 2 loopback mode with real streams counter and streams chart
  • DApps-SG: Control suite for multiple streams generator
  • DApps-2544: Test Suites for RFC 1242 and RFC 2544
  • DApps-2889: Test Suites for RFC 2285 and RFC 2889 (partial)
  • DApps-QoS: QoS testing based on VLAN item and IP/UDP item of Layer3
  • DApps-MPT: Automated Ethernet device batch tests for mass-production line or network device certifications in laboratories
  •
