Wi-Spy DBx USB Connected Spectrum Analyzer metageek Wi-Spy DBx

This page keeps all original information and links. Japanese page

DeviceFinder

→ Purchase consultation



Wi-Spy DeviceFinder
（ALFA network APA-M25)
Wi-SpyDBx has been discontinued. Please use the successor OSCIUMInc.Wi-Spy/WiPry as OSCIUM acquired Metageek.

This is a directional antenna that detects the source of devices using the 2.4GHz-2.5GHz band.

Wi-Spy DeviceFinder (ALFA network APA-M25) is a directional antenna dedicated to Wi-Spy 2.4x and Wi-Spy DBx to detect devices in the 2.4GHz band.
※DeviceFinder単体では使用することはできません。Wi-Spy2.4xおよびDBxと併用してお使いください。また専用analysistoolChanalyzerシリーズが必要になります。

Wi-Spy Air and Wi-SpyDBx will continue to be sold after May 2022. Chanalyzer + ReportBuilder functionality is provided as a perpetual license of Chanalyzer.
Also available with Chanalyzer/EyeP.A./Tonic as Metageek Enterprise Subscription for $500/year. Please give me お問い合わせ .


Ikeriri, an authorized distributor of metageek (Meta Geek Inc.) in the US, sells, supports, and maintains the Wi-Spy series. Not only can we offer low agent prices, but we also provide maintenance and support based on our extensive wireless LAN-related technology. Please give me inquiry(→Online) ! !

Wi-Spyシリーズ (USB connection spectrum analyzer)
WiSPY is a USB connection type spectrum analyzer compatible with 2.4GHz/5GHz that runs on Windows. By installing the software Chanalyzerr on your PC, you can easily visualize the radio wave situation and use it for investigating and troubleshooting your wireless LAN environment. Not only do you no longer have to carry around the large, handheld analog measurement devices you used to use, you can now utilize the data using your PC! You can use it in conjunction with site survey tools such as AirPcapシリーズ and Ekahau for even more use! You can purchase Ikeriri at a low price from an authorized dealer. 米国から直接輸入するより送料や税金を考えても安くできます！保守・supportも相談します！大学の方、研究所の皆様、ぜひinquiryくださいませ。 → immediately お問い合わせ！

Users of Wi-Spy DeviceFinder (ALFA network APA-M25)?

  • Corporate IT department System management department Information system department
  • IT departments of hospitals and universities
  • Large scale wireless LAN support department
  • Network engineer involved in IEEE802.11
  • Wireless engineer involved in 2.4GHz/5GHz band

What you can do with Wi-Spy DeviceFinder (ALFA network APA-M25)

  • Find out which bands are available to optimize your wireless performance.
  • You can visualize and analyze radio signals by displaying both 2.4GHz and 5GHz spectrum.
  • You can check various signals, including wireless LAN, cordless phones, microwave ovens, ZigBee, and Bluetooth, and check the usage status of 2.4GHz and 5GHz in real time.
  • Identify nearby access points and sources of interference and interference to resolve issues.
  • You can conduct an accurate site survey of the wireless LAN environment.

Wi-Spy DeviceFinder performance

Directional antenna ALFA APA-M25
DeviceFinder 		frequency band 2.4GHz-2.5GHz
5.15GHz-5.18GHz
Connector model RP-SMA (male)
horizontal beam width 66 degrees
vertical beam width 16 degrees
Gain 8dBi@2.4GHz
10dBi@5GHz
Compatible models Wi-Spy DBx, Wi-Spy 2.4x
Compatible software Chanalyzer series

Wi-Spy Air and Wi-SpyDBx will continue to be sold after May 2022.
The functions of Chanalyzer + ReportBuilder are provided as a perpetual license of Chanalyzer.
Also available with Chanalyzer/EyeP.A./Tonic as Metageek Enterprise Subscription
for $500 per year. Please give me お問い合わせ . → ご購入のinquiry


2.4 GHz band

5 GHz band

frequency range

2.400 to 2.495

5.150 to 5.850

frequency resolution

26 KHz to 3 MHz

24 KHz to 3 MHz

filter band

58 to 650 KHz

54 to 600 KHz

antenna terminal

RP-SMA

amplitude range

-100 dBm to -6.5 dBm

amplitude resolution

0.5 dBm

Ryan-san
Ryan Woodings , representative of MetaGeek
Sharkfest'10@Stanford 2010/06/18

compatible software

Chanalyzer Pro
Chanalyzer Pro is a software designed to perform complete spectrum analysis of wireless LAN. In addition to the traditional Chanalyzer functions, you can also use automation functions to easily discover wireless LAN devices and create reports.

Chanalyzer3 Windows version (included as standard)
Chanalyzer Lite Windows version

    • Windows XP or later requires .Net 2.0 framework.
    • USB interface

Chanalyzer Lite Mac version

    • Mac OS X 10.6
PlannerView
プランナー画面
The channelizer displays the maximum, average, and current spectrum as a traditional spectrum analyzer screen.

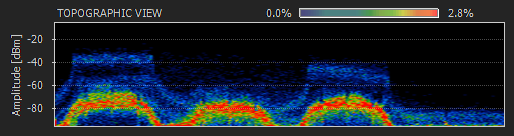

TopologicalView
トポロジカル画面
Topological screens are a key feature of channelizers. Like a map of wireless density, it uses colors to display frequencies and usage. This is useful for finding less used frequencies.

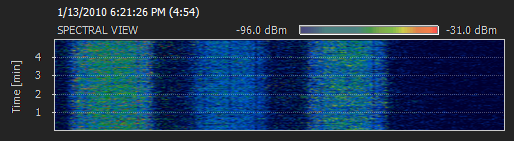

SpectrumView
スペクトラム画面
The spectrum screen that Metageek calls the waterfall screen represents the state of amplitude as it changes over time. Using the Spectrum screen, you can check for time-dependent problems, such as whether the problem only occurs in the morning or only during the day.
