ProfiShark 1G Plus GPS/PPS compatible 1Gbps full duplex lossless full capture

This page keeps all original information and links. Japanese page

ikeriri-top

＋ Product list → CommView → TamoGraph → Wi-Spy → Chanalyzer → WLAN Pi → MetageekApp → ProfiShark → IOTA → tap products → Dualcomm → penetration training equipment → password recovery → Side channel fault injection → Wireshark

＋ Profitap → capture appliance IOTA → IOTA traffic management screen → IOTA 1G+ IOTA10G＋ → IOTA 10 Core → IOTA 100 Core → Full duplex tap C1P-1G → Profishark 1G → ProfiShark 1G Plus → ProfiShark 10G → ProfiShark 10G Plus → BiDi compatible PON TAP → network packet broker → 1-100G Fiber TAP → 10G Cupper TAP → 10/40G Bypass TAP → Regeneration TAP → Replication TAP → Aggregation TAP

Profitap Authorized Technology Partner and Profitap Authorized Distributor (→ Profitap公式 )	Ikeriri has been selling, supporting, and maintaining the ProfiShark series from Profitap in the Netherlands since 2008. We have a long relationship with President Geoffrey and others, and not only can we offer low agent prices, but we also provide maintenance and support based on our extensive technology and experience. Please give me inquiry(→Online) ! !
ProfiShark 1G Plus Price USD2995$ → お問い合わせください GPS/PPS compatible	ProfiShark 1G + (ProfiShark 1G Plus) USB3 connection GPS compatible hardware capture adapter 10/100/1G bps full capture via USB3.1 connection USB 3.1 power supply No adapter required Works with USB3 power supply, but 5V1A DC input can be used separately Fail-safe monitor with 2-port bypass Low latency Low jitter Hardware aggregation by 2-port aggregation ８ナノ秒のハードウエアタイムスタンプ* Tested Improved accuracy by synchronizing hardware timestamps of GPS connections with PPS (compatible with both PPS input and output) GPS antenna terminal included (SMA female) Includes PPS terminal from NTP (SMA female) Statistics in real time Advanced network port settings and control Monitoring bands for low level errors Capturing CRC errors All frames of 32 bytes or more can be captured Supports short/jumbo/VLAN/VXLAN/MPLS/Pause frames Save pcap/pcapng directly to disk Dual NIC mode (SPAN) PoE pass-through compatible Light and easy to carry Easy to set up and use Compatible with Windows (32/64bit), Linux, and Mac You can build an inexpensive capture system by directly connecting to Synology NAS. ProfiShark 1G Plus Price USD2995＄ Discount → お問い合わせください

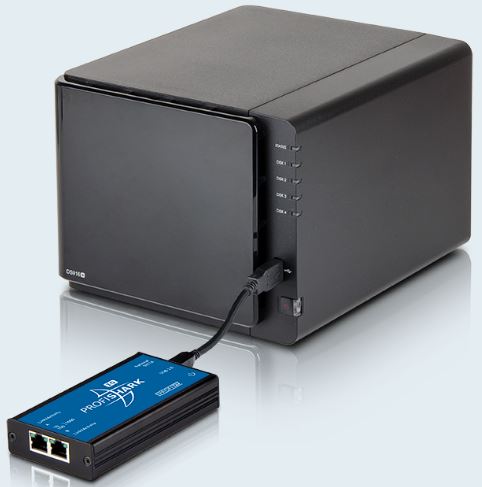

	PC connection Normally, it can be connected to a PC using USB3.0, and power supply and hardware capture can be performed with a single cable. (If the notebook PC does not have enough power, you can connect it with a separate DC5V AC adapter to supply power.) NAS linkage By directly connecting Synology's NAS to the ProfiShark series, long-term capture is possible without the need for a PC. You can choose between regular capture and ring buffer (discarding old files). You can split capture files by time or size. Capture solutions such as 4TB x 4 RAID usually cost XX million yen, but with ProfiShark and SynologyNAS, you can build a non-sampling, full-capture hardware capture solution at a low price in the XX million yen range → LongTermCapture Whitepaper (PDF)
Connection image Each port can operate in inline mode with fail-safe (the cable is connected even if the power is cut off). It can also be operated by port spanning.
Connection diagram	Until now, gigabit troubleshooting has required specialized, expensive NICs such as TurboCap and desktop PCs to capture and send packets. However, by using the USB 3.0 interface, which has a bandwidth of up to 5Gbps, you can easily perform gigabit measurements, troubleshooting, and capture on your laptop. ProfiShark 1G Plus is a device that can perform full capture and packet transmission at full duplex 2Gbps with USB3.0 connection. ProfiShark1G can transparently tap 1Gbps of traffic and capture 2Gbps of traffic without bottlenecks, even on low-power devices such as laptops. Using ProfiShark1G Plus, it is possible to acquire packets without delay or packet loss due to tapping. The ProfiShark 1G is extremely small and powered by USB 3.0, making it ideal for field capture and troubleshooting. ProfiShark 1G is recognized by many analyzers including Wireshark. It can also be used on Windows 7, Windows 8, Windows 10 and Linux.

ProfiShark 1G+'s GPS timestamping feature allows for real-time capture of both aggregated and buffered traffic. The GPS antenna input allows you to obtain nanosecond-level timestamps (typically ±16 nanosecond accuracy for GPS) based on UTC. PPS signal input also improves NTP-based time accuracy.
Unlike cheap aggregation taps, Profitap is a full-duplex tap (BreakoutTAP). Difference between cheap aggregation type taps and full duplex taps Aggregation type taps The traffic is captured in full duplex but may be dropped on the capture port. Full-duplex tap (BreakoutTAP) Packets captured on 2 ports are copied to 2 ports. Two NICs are required for investigation, but Profitap captures with hardware and sends pcap/pcapng files to USB3 port (bandwidth 5GB). It is also possible to capture short/jumbo/VLAN/VXLAN/MPLS/Pause frames, etc.
	Introduction text (PDF) ProfitapMegumiTakeshitaWhitepaper (PDF) World-best-portable-network-TAP-ProfiShark-1G Data sheet (PDF) ProfiShark-1G-Plus-Datasheet Manual (PDF) ProfiShark-1G-Manuaｌ New manual New ProfiShark-1G-Manual Japanese introduction text by Ikeriri (PDF) ProfiShark 1Gのご紹介 ProfiShark 1G Plus Price USD2995＄ Discount → お問い合わせください
Capture counter screen
Connector 2 x RJ45 8 pins 1 x USB 3.0 1 x 5 VDC optional input *Operates with USB3 power, but 5V1A DC input can also be used separately 1 x SMA female (PPS) 2 x SMA female (GPS) accessories 1.8 m USB 3.0 cable RJ45 cable Pouch USB key size 105 x 124 x 26 mm 4.12 x 4.88 x 1.02 in System requirements Dual Core Processor 4 GB memory USB 3.0 port Support OS Windows 7/8/10 (32-bit & 64-bit) Linux
